- Commodity name： Concrete pump
KEYWORDS:
Luhang Machinery Equipment
- Product Description
-
Concrete pump, also known as concrete pump, is composed of a pump body and a conveying pipe, which is a machine that uses pressure to continuously transport concrete along a pipeline. It can continuously complete the vertical and horizontal transportation of concrete, high efficiency, labor saving, mainly used in house construction, bridge and tunnel construction.
Sports Event Unit S-valve pumps HBT60S-9-75 HBT60S-13-90 HBT60S-16-110 HBT80S-13-110 HBT80S-16-132 Theoretical concrete delivery at low pressure m₃/h 60 60 60 80 80 Theoretical concrete delivery under high pressure m³/h 36 36 35 47 46 Theoretical concrete delivery pressure at low pressure Mpa 5.7 7.6 9.6 7.6 9.6 Theoretical concrete delivery pressure under high pressure Mpa 9 12.5 15.7 12.5 15.7 Hydraulic system pressure Mpa 26 32 32 32 32 Motor speed ~ 1480 Main Oil Pump ~ Germany imported Harvey / Rexroth, Japan Kawasaki Main cylinder bore/rod diameter*stroke mm 125/80*1650 125/80*1650 140/90*1650 125/80*1650(1800) 140/90*1650(1800) Conveying cylinder diameter mm 200 Conveying cylinder diameter Kw 75 90 110 110 132 Hydraulic oil tank volume L 500 Hopper volume m³ 0.6 Weight Kg 6000 6000 6200 6200 6500 Maximum vertical distance m 150 180 250 180 250 Maximum conveying horizontal distance m 600 700 1000 700 1000 Product Photograph
Case Studies
Standard Mixing Plant
Standard Mixing Plant
Standard Mixing Plant

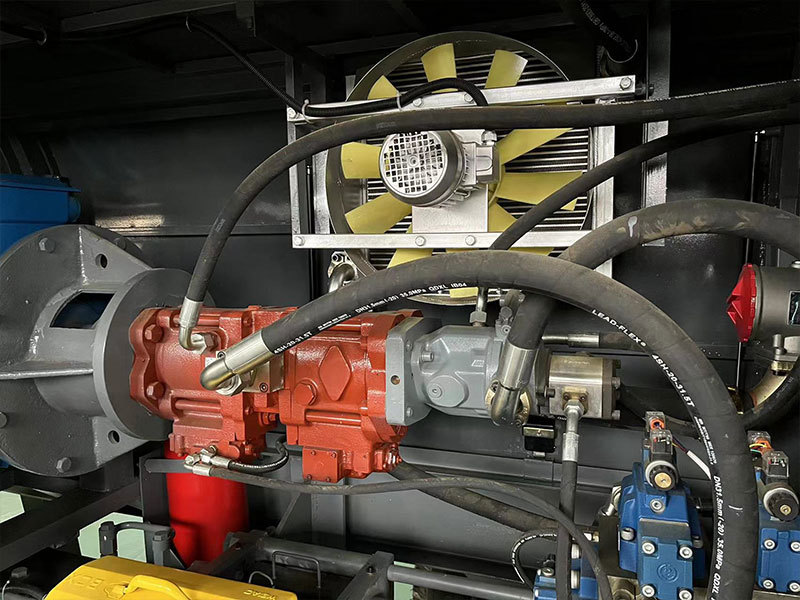

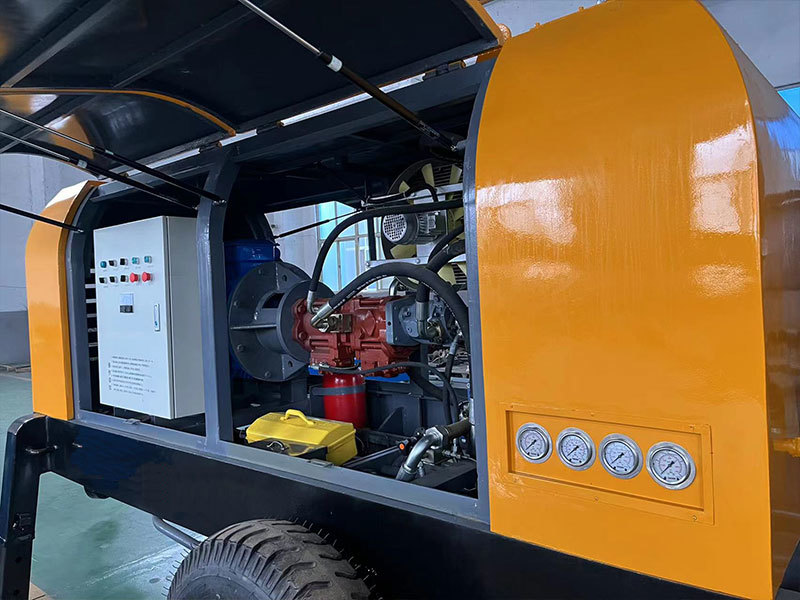

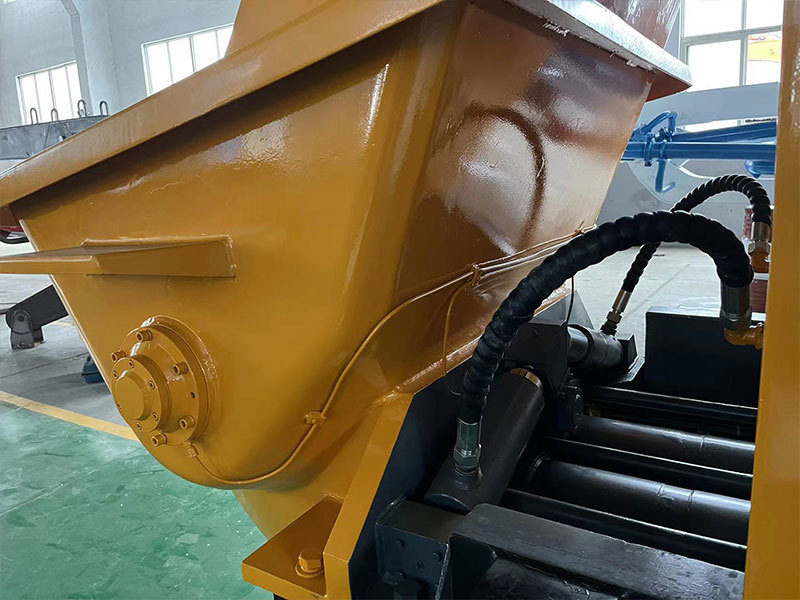

Product Details Photos
Shipping Photos
Shipping Photos
Shipping Photos
Factory Show
The company's mainbusiness includes concrete mixing, equipment.concrete recycling environmental protectionequipment, dust removal equipment, andsales services
FAQ
What certifications do your products have?
Do you provide samples Is it free or extra?
Once the products received by customer were found not comply with the products or contract demands, what will you do?
WHY CHOOSE US
Qingdao Luhang Machinery Equipment Co., Ltd.
Qingdao Luhang Machinery Equipment Co., Ltd.is a company dedicated to theresearch and development, manufacturing,sales, and after-sales service of concretemixing plant equipment. The company's mainbusiness includes concrete mixing, equipment.concrete recycling environmental protectionequipment, dust removal equipment, andsales services, We are dedicated to serving youin our three major production bases located inJinan, Shandong, Qingdao, Shandong, andChangsha, Hunan.
